main.cpp File Reference

#include "convertToString.h"
#include "PPath.h"
#include "OptionParser.h"
#include "pxml_utils.h"
#include "pinkscape_slide.h"

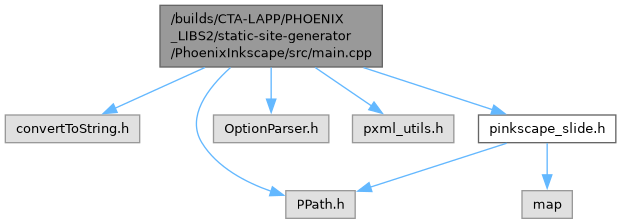

Include dependency graph for main.cpp:

Go to the source code of this file.

Classes
struct	PLayer
	Get the begin and end slide for current layer. More...

Typedefs
typedef std::vector< long unsigned int >	PSlide
	Slide composed of layer.
typedef std::vector< PLayer >	PVecLayer
	Vector of layer.
typedef std::vector< PSlide >	PVecSlide
	Define the layer in slide.

Functions
OptionParser	createOptionParser ()
	Create the OptionParser of this program.
void	createSlideWithLayer (PSlide &slide, const PVecLayer &vecLayerSlide, long unsigned int index)
	Create the slide to be generated.
void	createVecSlide (PVecSlide &vecSlide, PVecLayer &vecLayerSlide)
	Create the vector of slides.
void	createVectorSlide (PVecLayer &vecLayerSlide, const PVecXml &vecLayer)
	Create the vector of slide layer.
PString	getInkscapeLabel (const PXml &layerXml)
	Get the inkscape label of current PXml.
PString	getSlideNumber (long unsigned int i)
	Convert the slide index into string.
int	main (int argc, char **argv)
int	processFiles (const std::vector< PPath > &listInputFile)
	Process all the input files.
bool	processFileSvg (const PPath &inputFile, bool isInkscapeExist)
	Process all the input files.
bool	saveSlides (POutoutMode &outputMode, const PPath &baseOutputName, const PVecSlide &vecSlides, const PVecXml &vecLayerXml, const PXml &lighRoot, bool isInkscapeExist)
	Save the slides.

Typedef Documentation

PSlide

typedef std::vector<long unsigned int> PSlide

Slide composed of layer.

Definition at line 44 of file main.cpp.

PVecLayer

typedef std::vector<PLayer> PVecLayer

Vector of layer.

Definition at line 41 of file main.cpp.

PVecSlide

typedef std::vector<PSlide > PVecSlide

Define the layer in slide.

Definition at line 47 of file main.cpp.

Function Documentation

createOptionParser()

OptionParser createOptionParser

(

)

Create the OptionParser of this program.

Returns

OptionParser of this program

Definition at line 17 of file main.cpp.

                                 {
        OptionParser parser(true, __PROGRAM_VERSION__);
        parser.setExampleLongOption("phoenix_inkscapesplitter --input=file.svg --output=output/dir/");
        parser.setExampleShortOption("phoenix_inkscapesplitter -i file1.svg file1.svg fileN.svg -o output/dir/");

        parser.addOption("input", "i", OptionType::FILENAME, true, "list of input files to be treated");

        PString defaultOutputDir(".");
        parser.addOption("output", "o", defaultOutputDir, "Output directory");

        return parser;
}

Referenced by main().

Here is the caller graph for this function:

createSlideWithLayer()

void createSlideWithLayer	(	PSlide &	slide,
		const PVecLayer &	vecLayerSlide,
		long unsigned int	index )

Create the slide to be generated.

Parameters

[out]	slide	: slide to be generated
	vecLayerSlide	: vector of the desired slides for the layers
	index	: index of the current slide to be generated

Definition at line 111 of file main.cpp.

                                                                                                   {
        long unsigned int i(0lu);
        for(PVecLayer::const_iterator it(vecLayerSlide.begin()); it != vecLayerSlide.end(); ++it){
                if(index >= it->begin && index <= it->end){
                        slide.push_back(i);
                }
                ++i;
        }
}

Referenced by createVecSlide().

Here is the caller graph for this function:

createVecSlide()

void createVecSlide	(	PVecSlide &	vecSlide,
		PVecLayer &	vecLayerSlide )

Create the vector of slides.

Parameters

[out]	vecSlide	: vector of slides to be created
	vecLayerSlide	: vector of the desired slides for the layers

Definition at line 125 of file main.cpp.

                                                                    {
        if(vecLayerSlide.size() == 0lu){return;}
        PVecLayer::iterator it(vecLayerSlide.begin());
        long unsigned int minSlide(it->begin), maxSlide(it->end);
        ++it;
        while(it != vecLayerSlide.end()){
                if(it->begin < minSlide){minSlide = it->begin;}
                if(it->end > maxSlide){maxSlide = it->end;}
                ++it;
        }
        for(PVecLayer::iterator itCmd(vecLayerSlide.begin()); itCmd != vecLayerSlide.end(); ++itCmd){
                if(itCmd->command == "UntilEnd"){
                        itCmd->end = maxSlide;
                }
        }
        for(long unsigned int i(minSlide); i < maxSlide + 1lu; ++i){
                PSlide slide;
                createSlideWithLayer(slide, vecLayerSlide, i);
                vecSlide.push_back(slide);
        }
}

References createSlideWithLayer().

Referenced by processFileSvg().

Here is the call graph for this function:

Here is the caller graph for this function:

createVectorSlide()

void createVectorSlide	(	PVecLayer &	vecLayerSlide,
		const PVecXml &	vecLayer )

Create the vector of slide layer.

Parameters

[out]	vecLayerSlide	: output vector of layer slide
	vecLayer	: vector of layer from svg file

Definition at line 66 of file main.cpp.

                                                                           {
        long unsigned int i(0lu);
        for(PVecXml::const_iterator itLayer(vecLayer.begin()); itLayer != vecLayer.end(); ++itLayer){
                PString inkscapeLabel(getInkscapeLabel(*itLayer));
                std::cout << "\tlayer '" << inkscapeLabel  << "'";
                PVecString listNb(inkscapeLabel.split('-'));
                long unsigned int begin(0lu), end(0lu);
                bool isBeginDefined(false), isEndDefine(false);
                PString command("");
                for(PVecString::iterator it(listNb.begin()); it != listNb.end(); ++it){
                        if(it->isNumber()){
                                if(isBeginDefined){
                                        end = atol(it->c_str());
                                        isEndDefine = true;
                                }else{
                                        begin = atol(it->c_str());
                                        isBeginDefined = true;
                                }
                        }else{
                                if(*it == "N" && isBeginDefined){
                                        command = "UntilEnd";
                                        std::cout << "\t=> until end";
                                }

                        }
                }
                std::cout << std::endl;
                if(!isBeginDefined && !isEndDefine){
                        begin = i;
                        end = i;
                }
                PLayer layer;
                layer.command = command;
                layer.begin = begin;
                if(isEndDefine){layer.end = end;}
                else{layer.end = begin;}
                vecLayerSlide.push_back(layer);
        }
}

References PLayer::begin, PLayer::command, PLayer::end, and getInkscapeLabel().

Referenced by processFileSvg().

Here is the call graph for this function:

Here is the caller graph for this function:

getInkscapeLabel()

PString getInkscapeLabel

(

const PXml &

layerXml

)

Get the inkscape label of current PXml.

Parameters

layerXml

: inkscape layer

Returns

inkscape label of current PXml

Definition at line 53 of file main.cpp.

                                               {
        PString attr("");
        PXmlAttr attrXml;
        if(pxml_getAttrIfExist(attrXml, layerXml, "inkscape:label")){
                attr = attrXml.getValue();
        }
        return attr;
}

Referenced by createVectorSlide().

Here is the caller graph for this function:

getSlideNumber()

PString getSlideNumber

(

long unsigned int

i

)

Convert the slide index into string.

Parameters

i	: slide index

Returns

output string

Definition at line 151 of file main.cpp.

                                           {
        if(i < 10lu){
                return "0" + valueToString(i);
        }else{
                return valueToString(i);
        }
}

Referenced by saveSlides().

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char **	argv )

Definition at line 293 of file main.cpp.

                               {
        OptionParser parser = createOptionParser();
        parser.parseArgument(argc, argv);

        const OptionMode & defaultMode = parser.getDefaultMode();
        std::vector<PPath> listInputFile;
        defaultMode.getValue(listInputFile, "input");

        return processFiles(listInputFile);
}

References createOptionParser(), and processFiles().

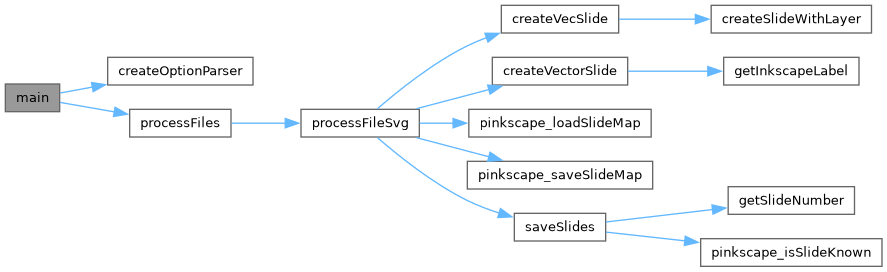

Here is the call graph for this function:

processFiles()

int processFiles

(

const std::vector< PPath > &

listInputFile

)

Process all the input files.

Parameters

listInputFile

: list of the input files

Returns

0 on success, -1 otherwise

Definition at line 280 of file main.cpp.

                                                        {
        if(listInputFile.size() == 0lu){
                std::cerr << "processFiles : no input file" << std::endl;
                return -1;
        }
        bool isInkscapeExist = system("inkscape --version") == 0;
        bool b(true);
        for(std::vector<PPath>::const_iterator it(listInputFile.begin()); it != listInputFile.end() && b; ++it){
                b &= processFileSvg(*it, isInkscapeExist);
        }
        return 1 - b;
}

References processFileSvg().

Referenced by main().

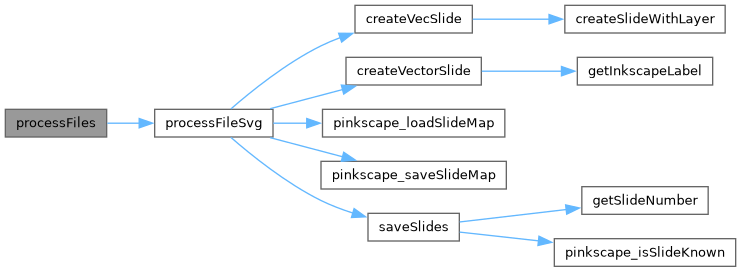

Here is the call graph for this function:

Here is the caller graph for this function:

processFileSvg()

bool processFileSvg	(	const PPath &	inputFile,
		bool	isInkscapeExist )

Process all the input files.

Parameters

inputFile	: list of the input files
isInkscapeExist	: true if the inkscape program has been found

Returns

true on success, false otherwise

Definition at line 221 of file main.cpp.

                                                                  {
        if(inputFile == ""){return false;}
        PXml root;
        if(!pxml_parserFile(root, inputFile)){
                std::cerr << "processFileSvg : can't load file '"<<inputFile<<"'" << std::endl;
                return false;
        }
//      cout << "processFileSvg : root nbChild : " << root.getVecChild().size() << endl;
//      PVecXml & vecChild = root.getVecChild();
//      for(PVecXml::iterator it(vecChild.begin()); it != vecChild.end(); ++it){
//              cout << "processFileSvg : '" << it->getName() << "'" << endl;
//      }
        PXml svgBalise;
        if(!pxml_getChildIfExist(svgBalise, root, "svg")){
                std::cerr << "processFileSvg : can't find 'svg' balise in root" << std::endl;
                return false;
        }

//      PVecXml & vecChildSvg = svgBalise.getVecChild();
//      for(PVecXml::iterator it(vecChildSvg.begin()); it != vecChildSvg.end(); ++it){
//              cout << "processFileSvg : svg '" << it->getName() << "'" << endl;
//      }

        PVecXml vecLayer;
        if(!pxml_getVecChildIfExist(vecLayer, svgBalise, "g")){
                std::cerr << "processFileSvg : can't find 'g' balise in svg" << std::endl;
                return false;
        }
        long unsigned int nbCalque(vecLayer.size());
        std::cout << "processFileSvg : get " << nbCalque << " layer";
        if(nbCalque > 1lu){std::cout << "s";}
        std::cout << std::endl;

        PVecLayer vecLayerSlide;
        createVectorSlide(vecLayerSlide, vecLayer);
        if(vecLayerSlide.size() == 0lu){
                std::cerr << "processFileSvg : no layer defined with -begin-end synthax" << std::endl;
                return false;
        }
        PVecSlide vecSlides;
        createVecSlide(vecSlides, vecLayerSlide);

        PXml lighRoot(root);
        PXml * svgPtr = pxml_getChildPtr(lighRoot, "svg");
        PXml svgNoLayer(pxml_eraseVecChild(*svgPtr, "g"));
        *svgPtr = svgNoLayer;

        POutoutMode outputMode;
        PString baseOutputSlideName(inputFile.getFileName().eraseExtension());
        pinkscape_loadSlideMap(outputMode.mapSlide, baseOutputSlideName);
        bool b = saveSlides(outputMode, baseOutputSlideName, vecSlides, vecLayer, lighRoot, isInkscapeExist);
        pinkscape_saveSlideMap(outputMode.mapSlide, baseOutputSlideName);
        return b;
}

References createVecSlide(), createVectorSlide(), POutoutMode::mapSlide, pinkscape_loadSlideMap(), pinkscape_saveSlideMap(), and saveSlides().

Referenced by processFiles().

Here is the call graph for this function:

Here is the caller graph for this function:

saveSlides()

bool saveSlides	(	POutoutMode &	outputMode,
		const PPath &	baseOutputName,
		const PVecSlide &	vecSlides,
		const PVecXml &	vecLayerXml,
		const PXml &	lighRoot,
		bool	isInkscapeExist )

Save the slides.

Parameters

baseOutputName	: base of the slides output names
vecSlides	: vector of slides to be created
vecLayerXml	: vector of xml layer to be used
lighRoot	: root xml without the layers in svg
isInkscapeExist	: true if inkscape has been found

Returns

true on success, false otherwise

Definition at line 167 of file main.cpp.

{
        long unsigned int i(0lu);
        for(PVecSlide::const_iterator itSlide(vecSlides.begin()); itSlide != vecSlides.end(); ++itSlide){
                PXml tmpRoot(lighRoot);
                tmpRoot.setName("");
                PXml * svgPtr = pxml_getChildPtr(tmpRoot, "svg");
                const PSlide & slide = *itSlide;
                for(PSlide::const_iterator it(slide.begin()); it != slide.end(); ++it){
//                      We need to suppress attribute : style="display:none"
                        PXml tmpLayer(vecLayerXml[*it]);
                        pxml_setAttr(tmpLayer, "style", "display:inline");
                        svgPtr->getVecChild().push_back(tmpLayer);      //We add the corresponding layer
                }
                //Save svg file
                PPath outputSlide(PPath("./") + baseOutputName + PPath("_") + getSlideNumber(i) + PPath(".svg"));
                //Get the svg content
                PString slideContent(pxml_baliseStr(tmpRoot, true));
                //Check if the svg is already saved
                if(pinkscape_isSlideKnown(outputMode, outputSlide, slideContent)){
                        continue;
                }
                //If not, save the svg into png image
                if(!outputSlide.saveFileContent(slideContent)){
                        std::cerr << "saveSlides : can't save svg file '"<<outputSlide<<"'" << std::endl;
                        return false;
                }
                //Call inkscape to make png file
                PPath outputSlidePng(baseOutputName + PPath("_") + getSlideNumber(i) + PPath(".png"));
//              PString command("inkscape --without-gui -e "+outputSlidePng+" "+outputSlide);
                PString command(PString("convert ") + outputSlide + PString(" ") + outputSlidePng);
//              PString command("inkscape --batch-process -o "+outputSlidePng+" "+outputSlide); //for Inkscape 1.1.2 (0a00cf5339, 2022-02-04)

                if(system(command.c_str()) != 0){
                        std::cerr << "saveSlides : can't create png file with command '"<<command<<"'" << std::endl;
                        return !isInkscapeExist;
                }
                //Removing the temporary svg files
                command = PString("rm ") + outputSlide;
                if(system(command.c_str()) != 0){
                        std::cerr << "saveSlides : can't remove temporary svg file with command '"<<command<<"'" << std::endl;
                        return false;
                }
                ++i;
        }
        return true;
}

References getSlideNumber(), and pinkscape_isSlideKnown().

Referenced by processFileSvg().

Here is the call graph for this function:

Here is the caller graph for this function:
